2405-8-8 Steel Straight JIC 37 Degree Flare Adapter - 1/2 FNPT x 1/2 inch JIC
Brand:
Mfr. Model #:
2405-8-8
KR Part #:
2405-8-8
Weight:
0.50 lbs
Availability:
1

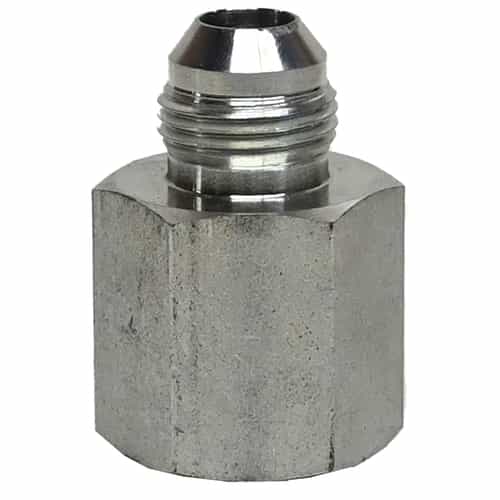

Straight flare adapter fitting made of steel. 1/2" female NPT x 1/2" male JIC. Ideal for hydraulic applications.
NOTE: Image may not be the exact part being sold on this page. Please check all specifications carefully.
NOTE: Image may not be the exact part being sold on this page. Please check all specifications carefully.
Technical Specifications
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch
Max PSI: 5000
Product Description
Steel Hydraulic JIC Adapter
The 2405-8-8 Hydraulic JIC Connector joins hoses, tubes, and piping in hydraulic systems. This high-pressure hydraulic fitting has a 1/2" female NPT end and a 1/2" male JIC connection on the other end. Made with high-quality steel.- End 1: 1/2" female NPT
- End 2: 1/2" male JIC 37° - SAE 3/4"-16 thread
- 5000 PSI maximum pressure
- Steel construction
- For hydraulic systems
- Built to withstand heavy impulse and vibration in both vacuum and pressure systems
- Interchangeable and easy to install, requiring no special tools
