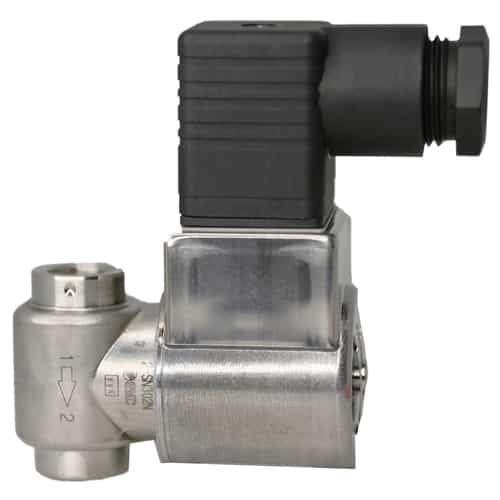

SMC Pneumatics JSX21-SN302N-3DS Stainless Steel Direct Operated Solenoid Valve - 1/4 Inch NPT, 120 VAC DIN, NBR Seal

Brand:
SMC Pneumatics
Mfr. Model #:
JSX21-SN302N-3DS
KR Part #:
SMC600-120DIN
Weight:
0.32 lbs
Availability:
1
Low Stock Warning
MSRP
$109.86
Now Only!
$91.55
A solenoid valve direct operated function. Used in applications involving air, water and oil. Din coil accepts 120 VAC electrical connections.
More Info...

Technical Specifications

Inlet Port: 1/4 inch
Outlet Port: 1/4 inch
Voltage AC: 120

Product Description

1/4 Inch - JSX Series Normally Closed Solenoid Valve

The SMC JSX21-SN302N-3DS is a direct operated normally closed solenoid valve that handles air, water and oil. Features proprietary DIN coil technology that is engineered to maximize magnetic efficiency and reduces energy consumption. An internal stopper is utilized to reduce the chatter of metal parts during operation. Stainless steel housing provides superior corrosion resistance in wet environments. DIN coil is compatible with 120 VAC electrical connections.

Specifications:
  • Function: Normally Closed
  • Size: 2 (Series 20)
  • Body Material: S (Stainless Steel)
  • Seal Material: N (NBR)
  • Orifice Diameter/Port Size: 302 (Orifice Diameter: ø3.2mm; Port Size: 1/4)
  • Thread Type: N (NPT)
  • Rated Voltage: 3 [120 (110) VAC]
  • Electrical Entry: DS (DIN Terminal, w/Surge Voltage Suppressor)
  • Bracket: None
Features:
  • Stainless steel enclosure for superior resistance to both corrosion and water
  • Coil technology maximizes magnetic efficiency and reduces energy consumption
  • Internal stopper reduces metal noise
  • Standard stainless-steel body, IP67 protection rating
  • 360-degree coil rotation
  • UL, CE and NSF compliant
