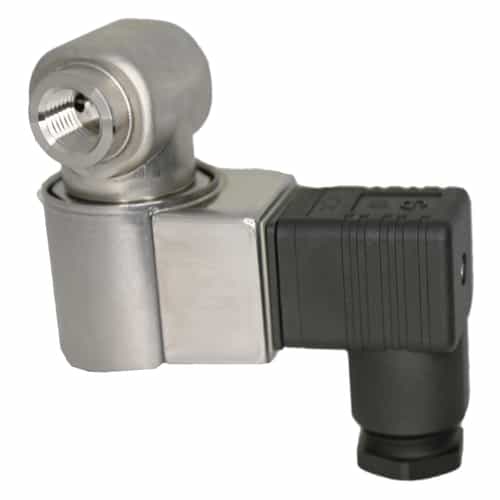

SMC Pneumatics JSX21-SN302N-BDS Stainless Steel Direct Operated Solenoid Valve - 1/4 Inch NPT, 24 VAC DIN, NBR Seal
Brand:
Mfr. Model #:
JSX21-SN302N-BDS
KR Part #:
SMC600-24DIN
Weight:
0.32 lbs
A solenoid valve direct operated function. Used in applications involving air, water and oil. Din coil accepts 24 VAC electrical connections.
Technical Specifications
Voltage AC: 24
Inlet Port: 1/4 inch
Outlet Port: 1/4 inch
Product Description
1/4 Inch - JSX Series Normally Closed Solenoid Valve
The SMC JSX21-SN302N-BDS is a direct operated normally closed solenoid valve that handles air, water and oil. Features proprietary DIN coil technology that is engineered to maximize magnetic efficiency and reduces energy consumption. An internal stopper is utilized to reduce the chatter of metal parts during operation. Stainless steel housing provides superior corrosion resistance in wet environments. DIN coil is compatible with 24 VAC electrical connections.Specifications:
- Function: Normally Closed
- Size: 2 (Series 20)
- Body Material: S (Stainless Steel)
- Seal Material: N (NBR)
- Orifice Diameter/Port Size: 302 (Orifice Diameter: ø3.2mm; Port Size: 1/4)
- Thread Type: N (NPT)
- Rated Voltage: B (24 VAC)
- Electrical Entry
- DS (DIN Terminal, w/Surge Voltage Suppressor)
- Bracket: None
- Stainless steel enclosure for superior resistance to both corrosion and water
- Coil technology maximizes magnetic efficiency and reduces energy consumption
- Internal stopper reduces metal noise
- Standard stainless-steel body, IP67 protection rating
- 360-degree coil rotation
- UL, CE and NSF compliant
