1/4 Inch - JSX Series Normally Closed Solenoid Valve

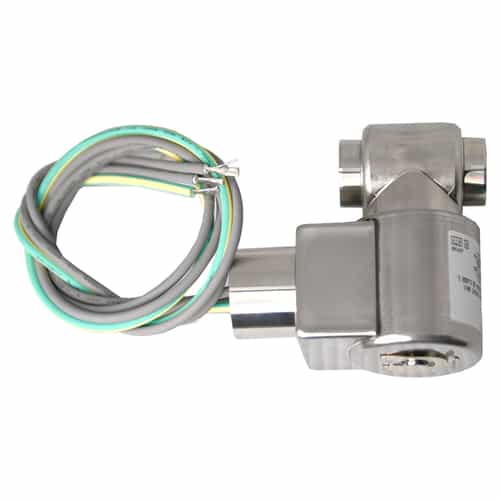

The SMC JSX21-SN302N-BCS is a direct operated normally closed solenoid valve that handles air, water and oil. Features proprietary coil technology that is engineered to maximize magnetic efficiency and reduces energy consumption. An internal stopper is utilized to reduce the chatter of metal parts during operation. Stainless steel housing provides superior corrosion resistance in wet environments. It is compatible with 24 VAC electrical connections.

Specifications:

• Function: Normally Closed
• Size: 2 (Series 20)
• Body Material: S (Stainless Steel)
• Seal Material: N (NBR)
• Orifice Diameter/Port Size: 302 (Orifice Diameter: ø3.2mm; Port Size: 1/4)
• Thread Type: N (NPT)
• Rated Voltage: B (24 VAC)
• Electrical Entry: CS (Conduit, w/Surge Voltage Suppressor)
• Bracket: None

Features:

• Stainless steel enclosure for superior resistance to both corrosion and water
• Coil technology maximizes magnetic efficiency and reduces energy consumption
• Internal stopper reduces metal noise
• Standard stainless-steel body, IP67 protection rating
• 360-degree coil rotation
• UL, CE and NSF compliant
