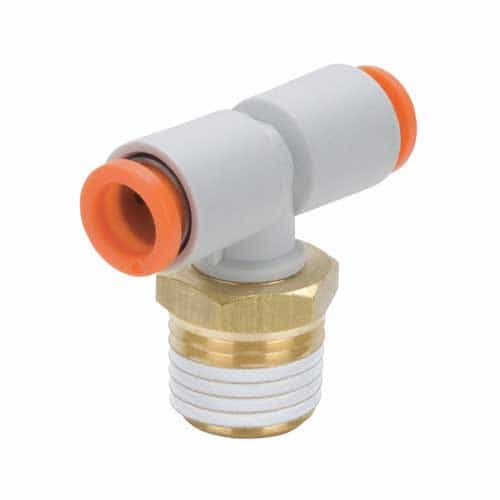

SMC Pneumatics KQ2T11-35AS Sealed One-Touch 1/4 M x 3/8 in. Branch Tee Fitting - 10 Pack
Brand:
Mfr. Model #:
KQ2T11-35AS
KR Part #:
FMT-0406
Weight:
0.50 lbs
One-touch tee fitting for nylon and polyurethane tube. This male branch tee has a brass 1/4" NPT connection and accepts tubing with a 3/8" outer diameter. Has a special seal that allows it to be used for low vacuum pressure up to 1 MPa pressure.
Technical Specifications
Max PSI: 145
Max Temperature: 140 degrees F
Inlet Port: 1/4 inch
Product Description
Nylon and Polyurethane Tube T Fitting - 10 Count
The SMC Pneumatics KQ2T11-35AS Male Branch Tee is a versatile fitting for air and water applications. This one-touch fitting has a brass 1/4" NPT thread connection and two ports for 3/8" outer diameter nylon and polyurethane tube. It has a rotating stud that makes it easy to install into confined spaces. A special profile seal allows the fitting to be used for everything from low vacuum pressure up to MPa pressure applications. Simple disconnection with a release collar that releases both the chuck and collet; requires very low disconnection force. Sold in a pack of ten.
- 10 count pack
- Tee style fitting
- 1/4" NPT connection port
- 3/8" outer diameter tubing
- Brass thread connection
- Special profile seal
- -100 kPa to 1 MPa operating pressure range
- 3 MPa proof pressure
- 23° to 140° Fahrenheit ambient temperature range
- 32° to 104° Fahrenheit fluid temperature range
- Accepts nylon and polurethane tubes
- Stud allows body rotation for easy installation in tight spaces
- Release collar - easy removal of tubing without damage
- Use for a wide pressure range from low vacuum to 1MPa (approximately 145 PSI)
- Weight: .05 lbs.
