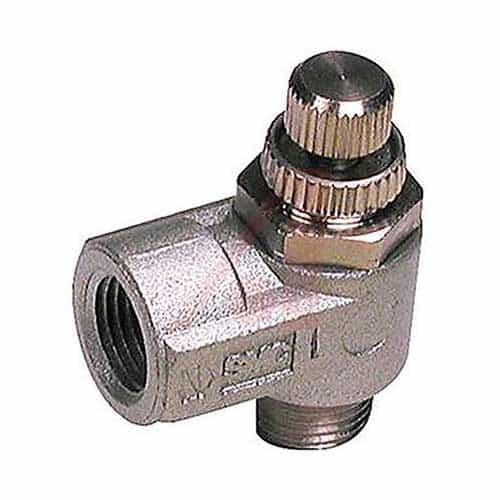

SMC Pneumatics AS2200-N01-S Nickel Plated Brass Flow Control One-Touch Elbow Fitting - 145 PSI, 1/8 NPT
Brand:
Mfr. Model #:
AS2200-N01-S
KR Part #:
SMC144
Weight:
0.80 lbs
Elbow style flow control fitting made with nickel plated brass. 145 PSI, 1/8" NPT ports.
Technical Specifications
Min PSI: 14.5
Max PSI: 145
Min Temperature: 23 degrees F
Max Temperature: 140 degrees F
Inlet Port: 1/8 inch
Outlet Port: 1/8 inch
Product Description
Series AS Speed Control Elbow Style Fitting
The SMC Pneumatics AS2200-N01-S is and elbow-shaped one-touch fitting with a nickel-plated brass body. This regulator controls the flow of compressed air to pneumatic actuators. AS Series flow controllers have a larger, push/pull-locking dial that makes precise adjustment easy and reduces the setting time.
Specifications:
- Inlet: 1/8" Male NPT
- Outlet Ports: 1/8" Female NPT
- Maximum Outlet Pressure: 145 PSI
- Minimum Outlet Pressure: 14.5 PSI
- Proof Pressure: 217.55 PSI
- Temperature Range: 23 to 140° Fahrenheit
- Electroless nickel plated brass body
- With sealant
- Applicable Tube Material: nylon, soft nylon, polyurethane, soft polyurethane
- Hexagon lock nut
Features:
- Minimizes installation time and cost
- Speed may be accurately controlled even at low velocity
- Constant speed easily achieved
- Retaining function prevents accidental loss of needle
- Meter out only free flow return
