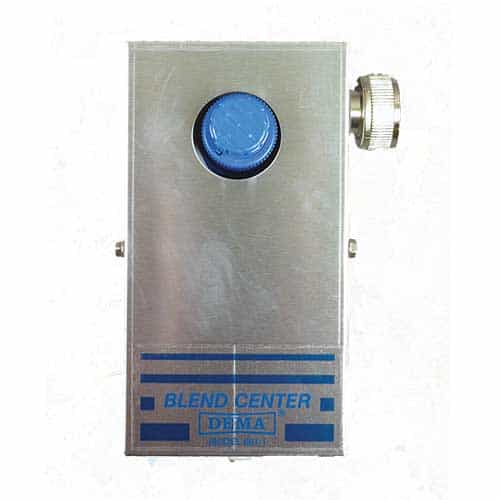

Enclosed Mixing Station

The Dema 681GAP.1 blend center has a flow rate of 4 GPM and contains a full blending assembly, housing, metering tip kit, and accessories! It's great for use at sink stations and with a variety of chemicals that need to be mixed with water. The water inlet is compatible with female garden hose fittings and also 3/8" NPT pipes. Simply interchange the pipe plug and female hose fitting to change the side that the water is supplied on.

Please see the attached specification sheet for installation diagrams and specific viscosity injection rates. A minimum pressure of 20 PSI is required. This blend center has a blue button for easy identification when paired with other blend center units.

• Maximum flow: 4 GPM
• Minimum pressure required: 20 PSI
• Maximum pressure: 125 PSI
• Maximum water temperature: 150°F

• Action gap prevents backflow
• Blue button
• Modular; combine with other units in series

• Full blend center assembly
• Durable stainless steel housing

• 8 foot long vinyl tubing included

• Ceramic foot valve weight included

• 9/16" ID vinyl outlet tubing included

• Two #8 pan head mounting screws and anchors, 3/4" long (included)

• Label card included

• Metering tip kit included
• Dema item #681GAP.1
• Also known as #681GAP-1


WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
