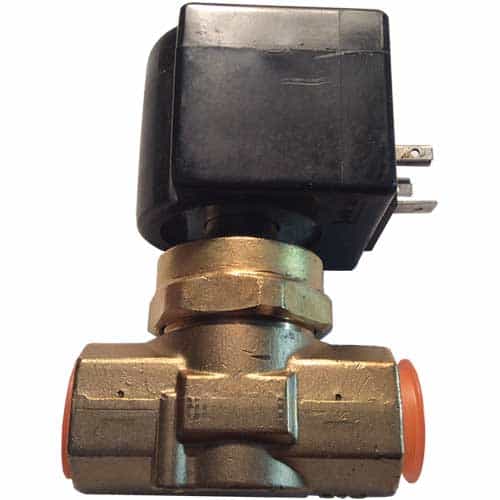

Dema A414P.3D Brass 1/2 in. Pilot-Piston Valve with 24VAC DIN Coil

Brand:
Dema Engineering
Mfr. Model #:
A414P.3D
KR Part #:
SOD414P24-DIN
Weight:
1.93 lbs
Out of Stock - Pre-Order Now
MSRP
$125.10
Now Only!
$81.33
This A414P pilot operated piston solenoid valve has a 24 VAC DIN coil, teflon seal, and maximum pressure of 150 PSI.
More Info...
Prep 65

Prop 65

Technical Specifications

Max PSI: 150
Voltage AC: 24

Product Description

1/2" Normally Closed Solenoid Valve - 150 PSI

This is a pilot-piston operated, general purpose solenoid valve. It is designed for use with water, air, light oil, and noncorrosive fluids. Do not use for gas and other hazardous or explosive fluids.

With this A414P model, the stem and plunger assembly opens the port. This releases pressure on top of the piston, which opens the main valve port. Dema pilot-piston solenoid valves are available for 3/8" to 1" pipes.

Size: 1/2" NPT

  • Rated for 200 degrees Fahrenheit fluid temp. and 120 degrees Fahrenheit ambient temp.
  • CV flow factor: 3.10
  • Orifice diameter: 0.438
  • Brass construction
  • Teflon seal
  • 24V AC DIN coil
  • Maximum pressure: 150 PSI
  • Normally closed

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
