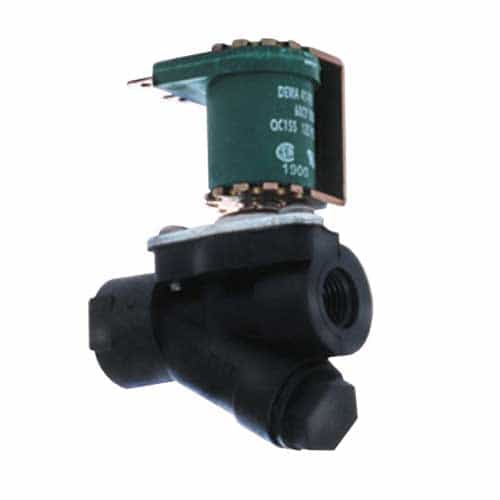

3/8" Plastic Mini 12VDC Solenoid Valve

The Dema P443.2 solenoid valve is a mini model with a 3/8" NPT pipe and 1 CV flow factor. It is rated for pressure levels between 3 and 125 PSI, and has a Celcon plastic body. This product is great for use on small, low pressure lines running non-corrosive fluids up to 180° Fahrenheit.

Please note: do not use Teflon¨ tape to seal internal threads as it may cause cracks in the plastic body. Non-welding liquid sealant is suitable for use on Dema Celcon valves.

Specifications and Details:

• Celcon plastic body material
• Mini diaphragm
• Minimum pressure: 3 PSI
• Maximum pressure: 125 PSI
• Maximum fluid temperature: 180° F
• Maximum ambient temperature: 120° F
• Flow factor: 1 CV
• 3/8" NPT pipe size
• 1/4" orifice
• 12 VDC, 10 watt electrical connection
• EPDM seals
• Size 60 mesh stainless steel filter
• NSF Standard 61, C-2 Approved
• Dema item #P443.2

Applications:

• Water
• Air
• Light Oil
• Other Non-Corrosive Liquids
